meatwagon 249

For small-scale meat production
meatwagon 249
No items found.

Contents of this brochure

Use the buttons below to automatically scroll to the relevant content.
Photo galleryVideoThe benefitsEquipment and optionsTechnical data

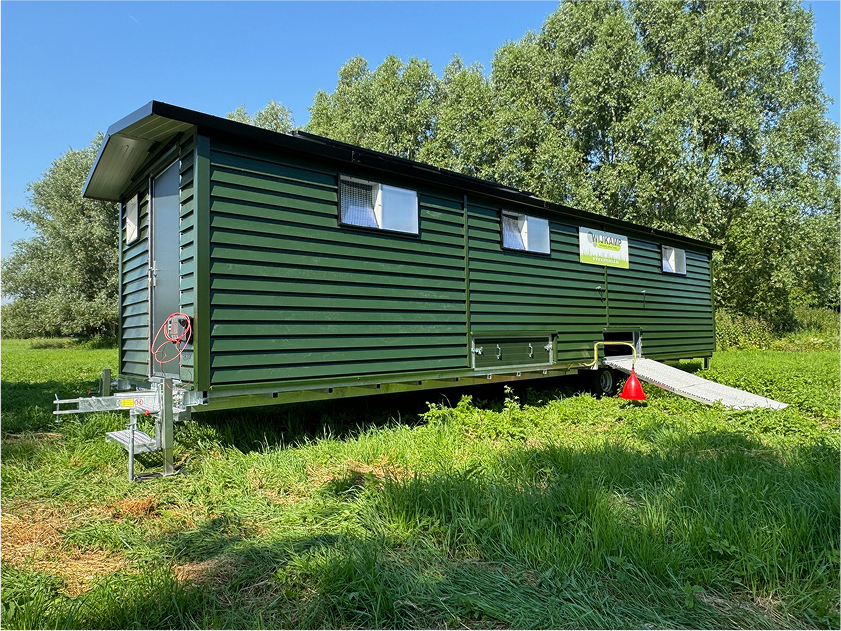

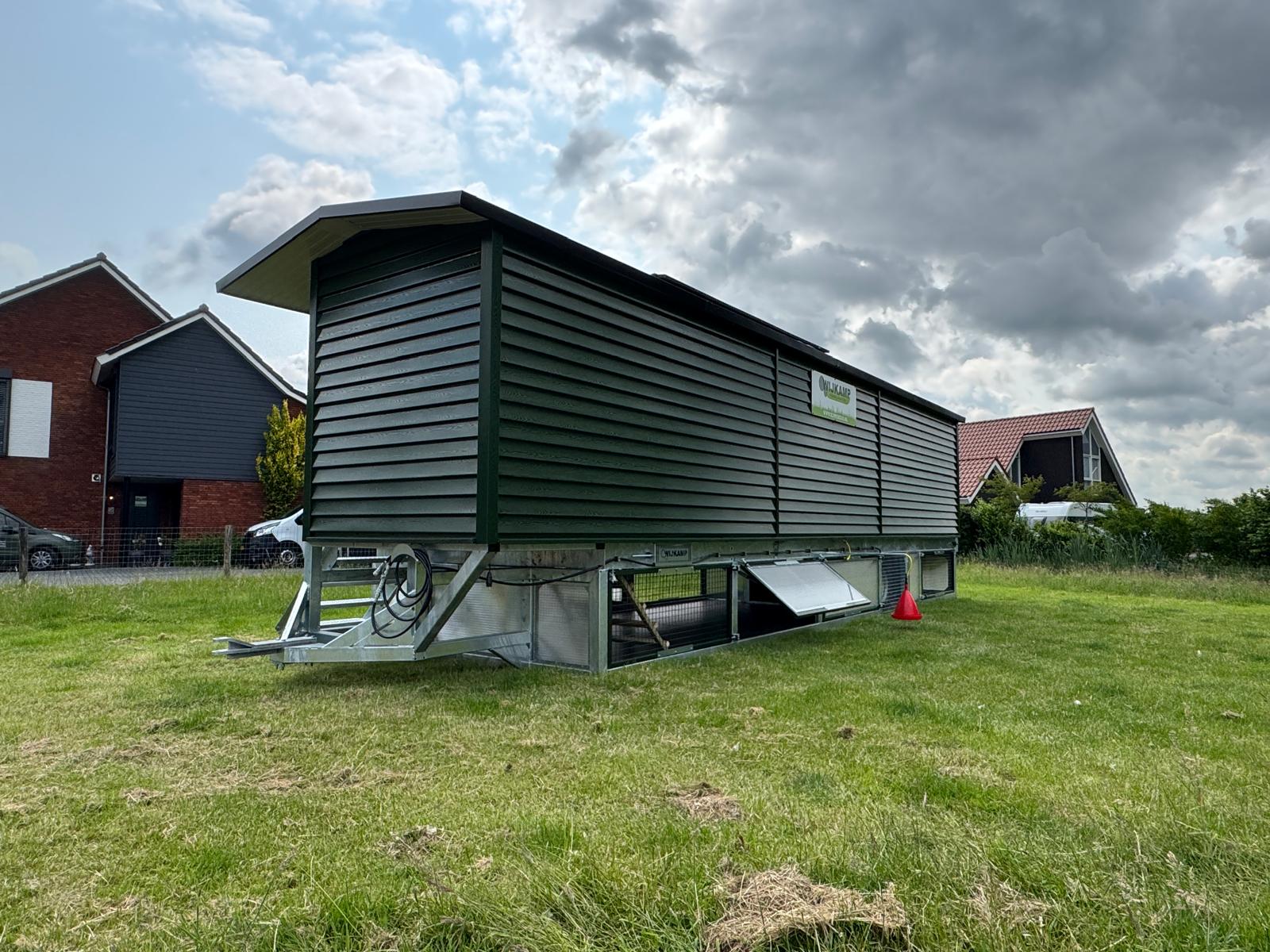

About the meatwagon 249
Flexible, mobile and responsible

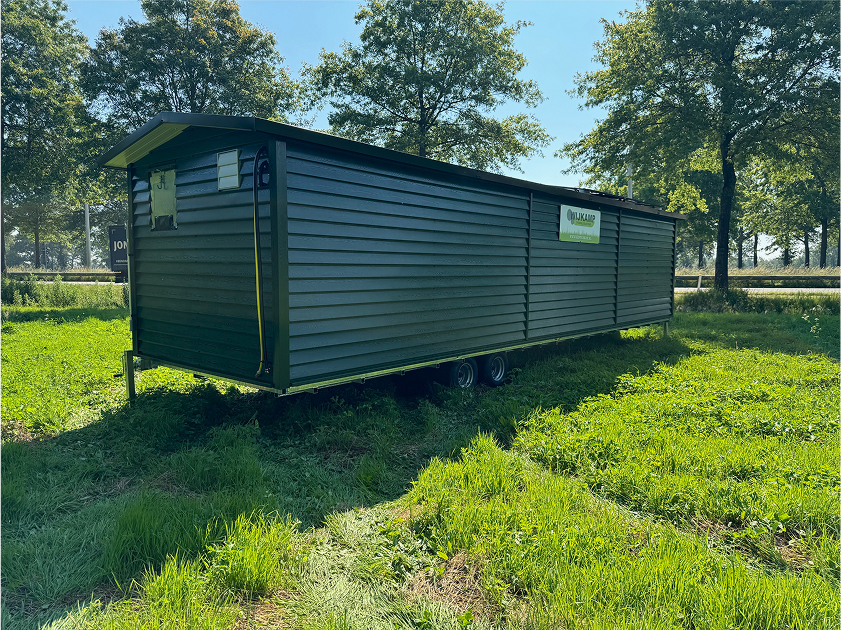

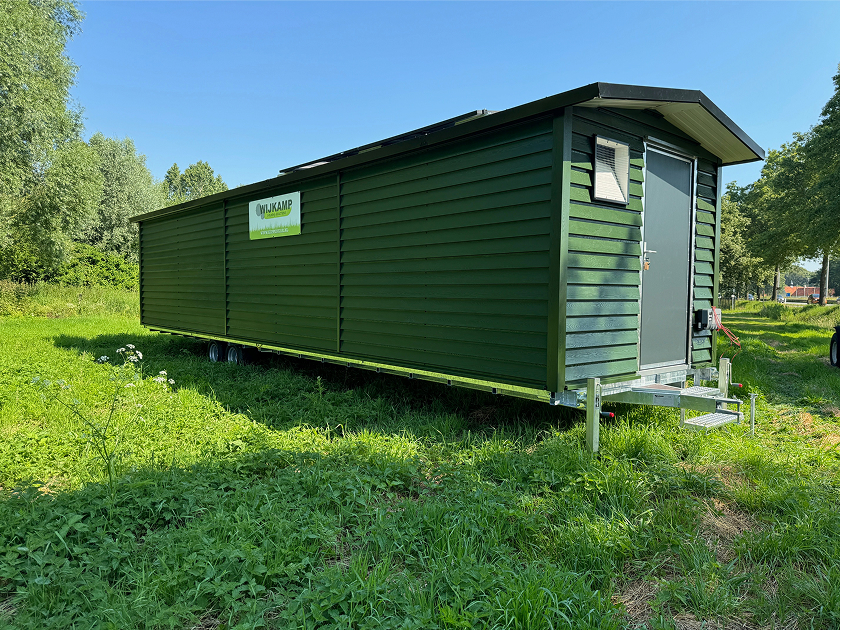

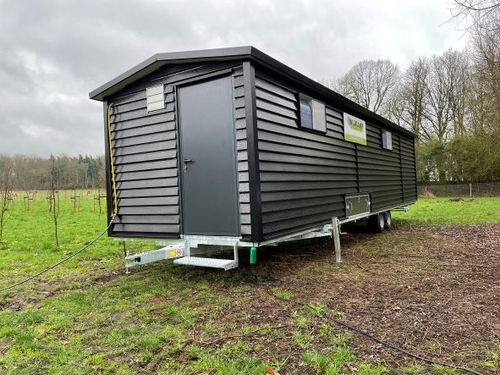

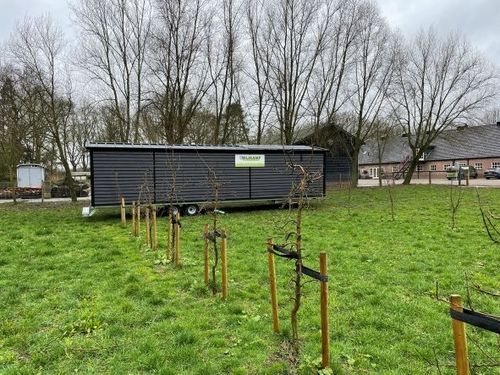

The Type 249 meatwagon is specially designed for keeping broilers, rearing layers or roosters. This Mobile meatwagon is designed as standard for a maximum of 275 broilers, with a maximum occupancy of 30 kg live weight per square meter until the end of the round. Thanks to its well thought-out design and compact dimensions, the cart is easy to move with a (small) agricultural vehicle, without the need for hydraulics. This makes the meatwagon ideally suited for flexible use on a variety of terrains.



Space and comfort

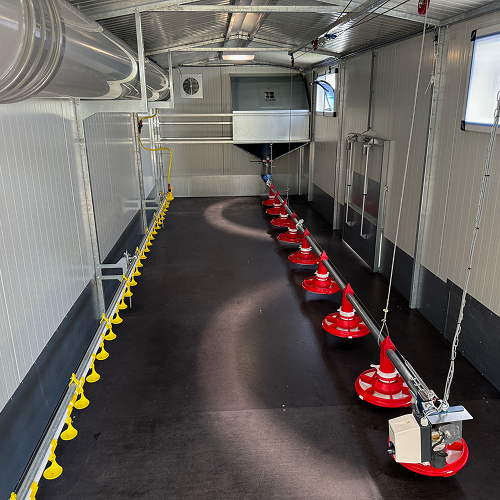

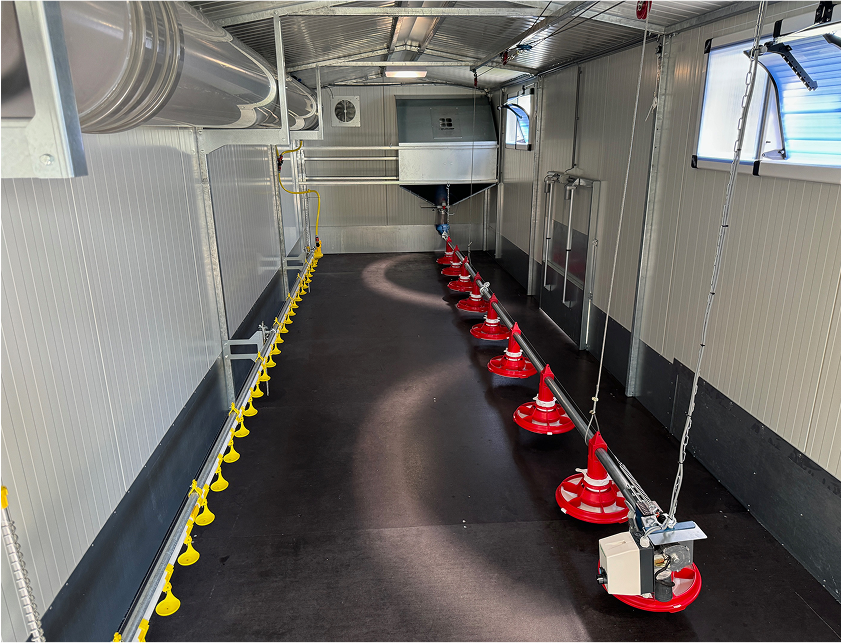

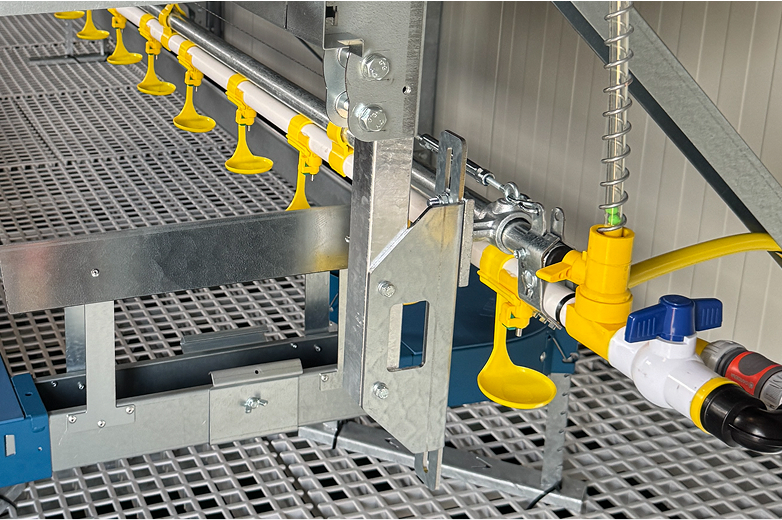

The cart features a fully enclosed floor where broilers can scratch during the day. The possibility of scattering creates a comfortable and hygienic surface. There is also a manure valve, which ensures that the meatwagon can be easily and quickly emptied after the round. Feed barrels as well as two different automatic feeding systems are available for the Meatwagon, both systems have a storage capacity of one week, as does the water supply. The water supply is easily refilled from the outside and provides enough storage capacity for a week. The water supply can also be connected directly to a fixed water connection for the first few weeks. The Broilers can take up this water via a nipple line with adjustable water pressure. Thanks to the closed system and limited light penetration, algae growth is minimized, contributing to a hygienic drinking water supply.

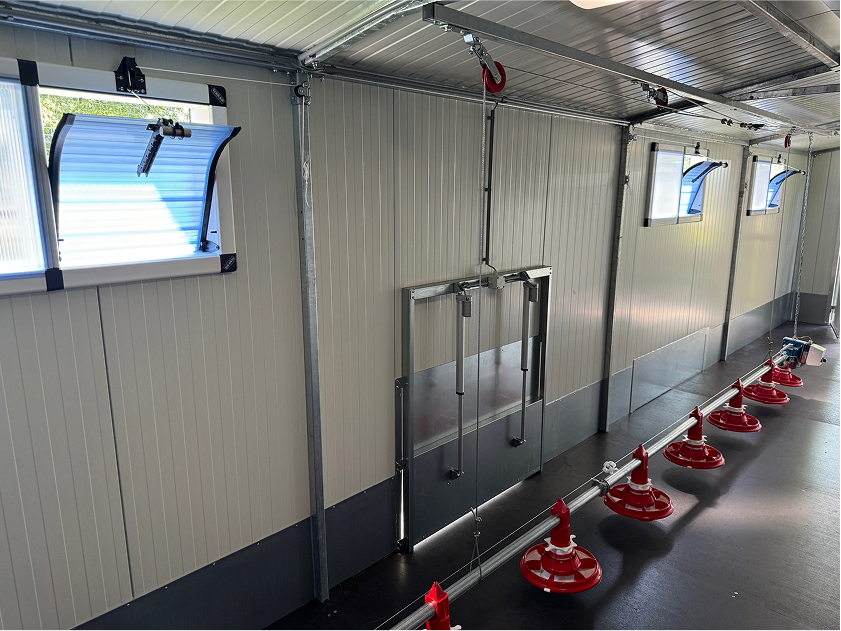

In addition, loading bins are provided that regulate the climate inside; these can be opened and closed manually. Optionally, a fan can be added for additional air circulation for a pleasant indoor climate. An automatic exit door opens in the morning and closes automatically at sunset, keeping the Broilers safely inside. It is also possible to equip the meatwagon with perches.



Self-sufficient with solar energy

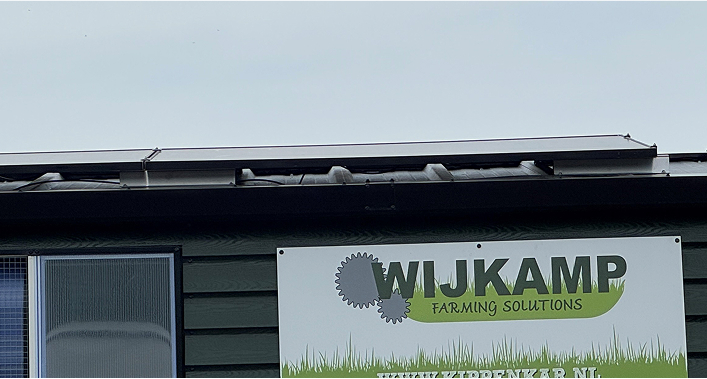

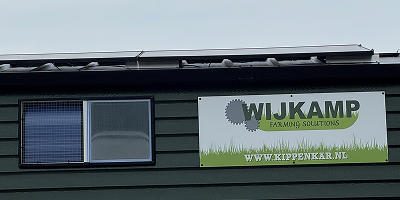

On the roof are solar panels that provide full power for all electrical equipment. These are supported by a battery, making the meatwagon almost completely self-sufficient in its energy supply.

Solar panels provide the basic power supply, but it is also possible to equip the meatwagon with a heat plate. This allows the chicks to be kept in it from the start. However, during the first weeks when the hot plate is used, the meatwagon must be temporarily connected to a fixed power supply.

Advanced control cabinet for optimal automation

The meatwagon is equipped with a modern control box with an integrated PLC system. This central control unit gives you full control over all automatic functions within the cart, keeping management simple and clear. Via a clear display, you effortlessly set the times for LED lighting, opening and closing of the exit door, feeding system, ventilation, etc. The water level is also continuously monitored and can be easily read on the cabinet. This control cabinet ensures the comfort and well-being of the Meat chickens. The control cabinet is user-friendly and designed for optimum reliability.

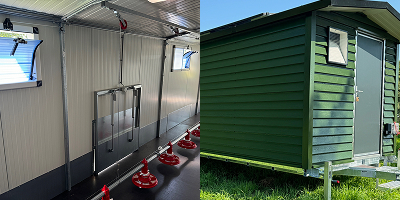

Excellent insulation and durable finish

Thanks to careful sealing of seams and cracks, blood lice hardly have a chance to succeed. The meatwagon is constructed of high-quality sandwich panels and finished with a steel wood look, providing a warm appearance without compromising on durability and wear resistance.



Need a bigger meatwagon ?

Would you like a larger meatwagon or a custom design? You can! Feel free to contact us - we will be happy to think with you about a solution that fits your business situation perfectly.

Daily activities:
  • Make control rounds;
  • Average of 10 minutes of work per day.

Weekly work:
  • Refill water;
  • Refill feed;
  • Move to a fresh patch of grass;
  • On average, 1 hour of work per week.

Heading 1

Heading 2

Heading 3

Heading 4

Heading 5
Heading 6

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur.

Block quote

Ordered list

  1. Item 1
  2. Item 2
  3. Item 3

Unordered list

  • Item A
  • Item B
  • Item C

Text link

Bold text

Emphasis

Superscript

Subscript

meatwagon 249
The advantages of the meatwagon 249
  • Water, feed storage for a week
  • No destruction of fields and nature
  • Fully mobile
  • Excellent insulation for all seasons
  • Farmer and Chicken Friendly

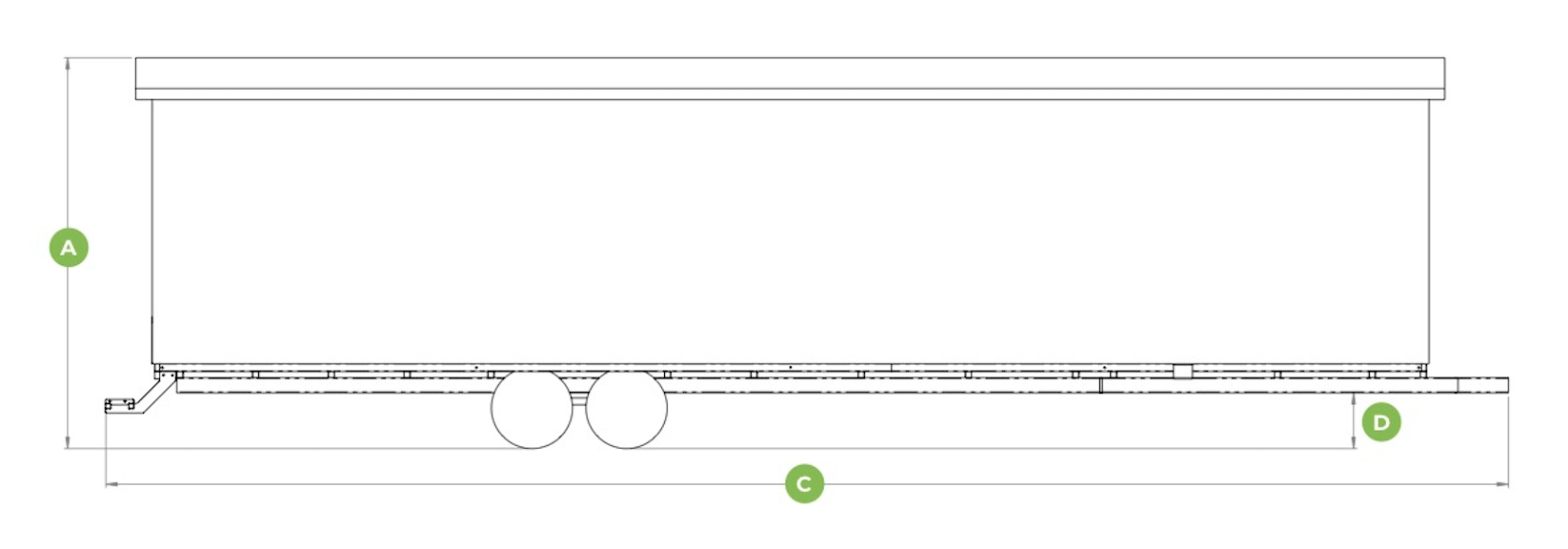

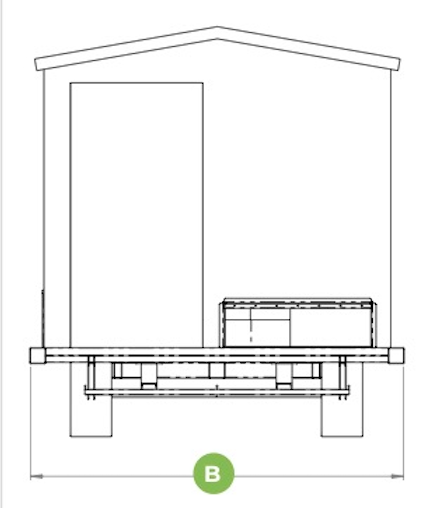

The dimensions of the meatwagon 249
A = 3.1m B = 2.8m C = 11.2m D = 0.4m
Living area
25.0
Lifting weight
2.5
ton
Full weight
4.0
ton
Standard equipment

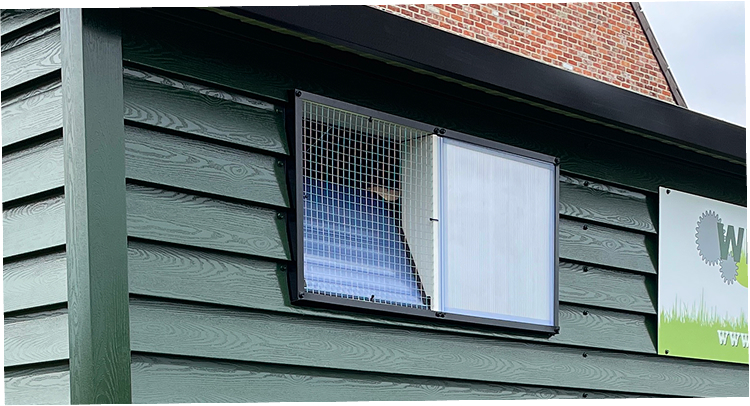

Steel finish
Solar panel
Level gauge
Automatic exit door
Water supply
Possible options
Feed trough with hydraulic feed auger (vertical)
Insulated bottom
Horn door
Camera system
Supplement tank 50 liters
Round Drinker
Manure valve

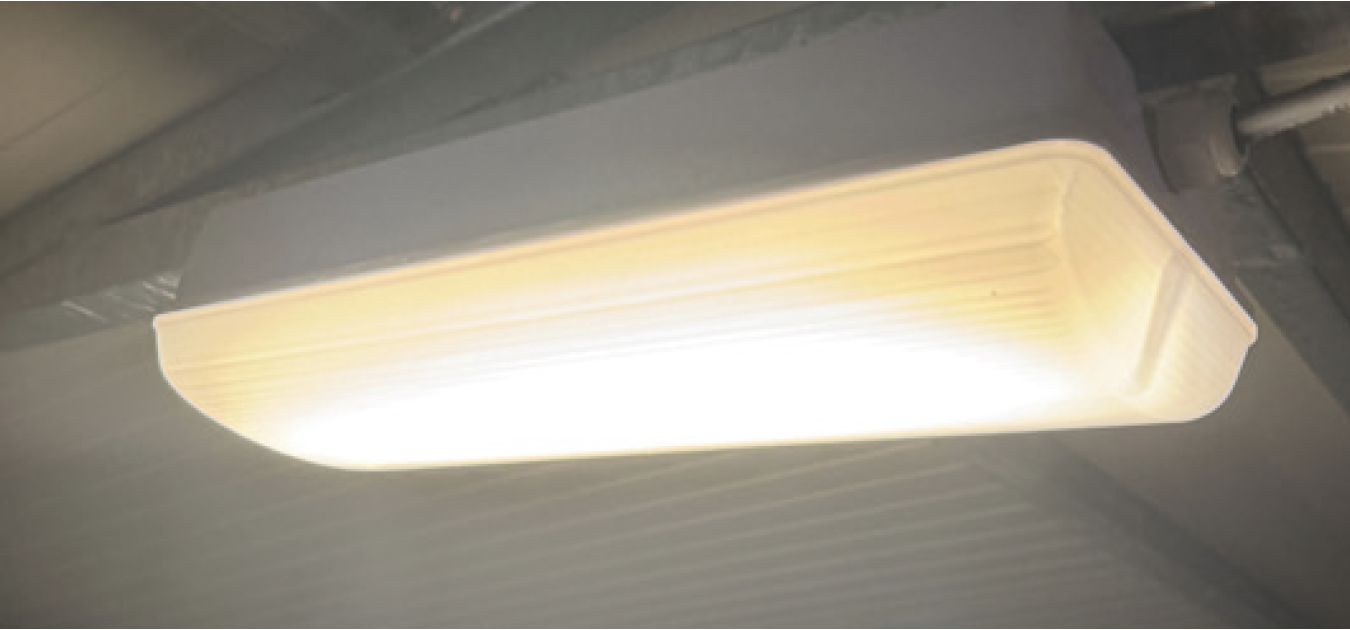

Dimmable lighting
Report faults via touchscreen display
Heating infrared panel
Steel mushroom-shaped perches

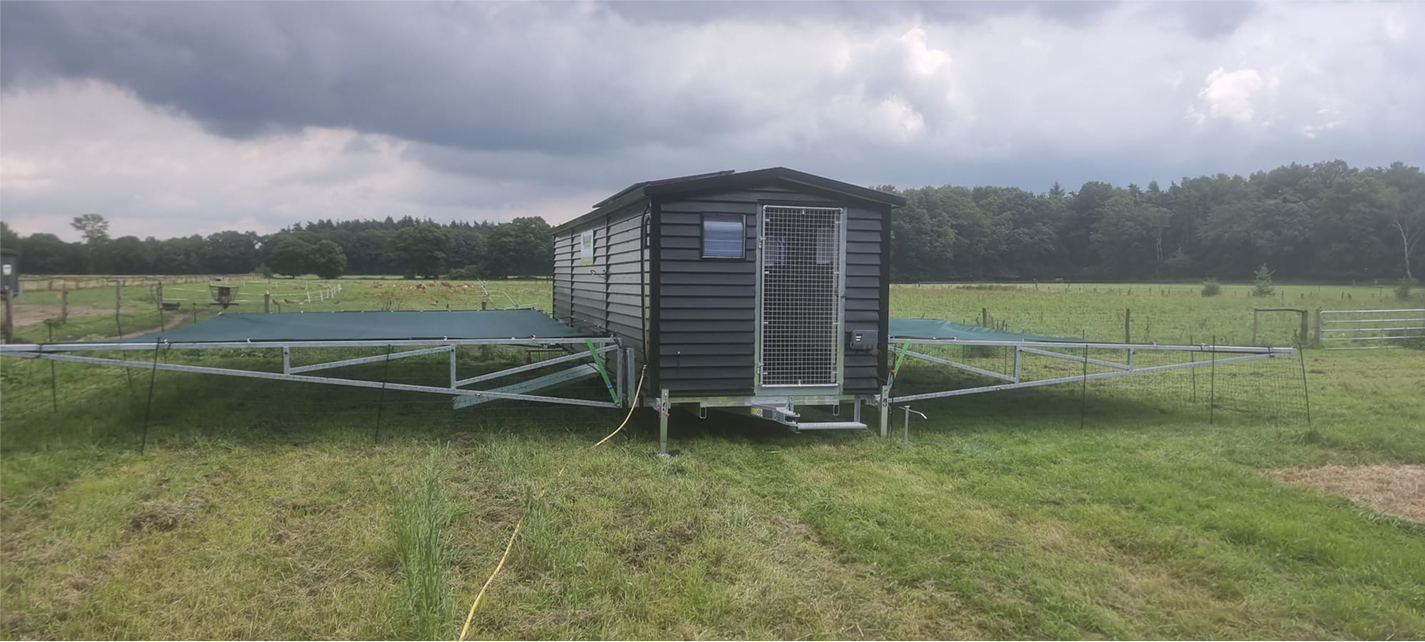

Fence device and poultry netting
Feed rings
Implement for behind the tractor
Feed trough with hydraulic feed auger (horizontal)
Automatic feeding system
Fan with temperature sensor
No items found.
Stijn van Bovenkamp Chickenwagon
Convinced about the meatwagon 249?
Our colleague Stijn will be happy to help you further with no obligation to assess your situation and the possibilities with the meatwagon 249.
