Chickenwagon 750
The Chickenwagon 750 is the innovative Mobile Chickenwagon, designed to offer your laying hens optimal comfort and safety, while benefiting from maximum flexibility and ease of use.

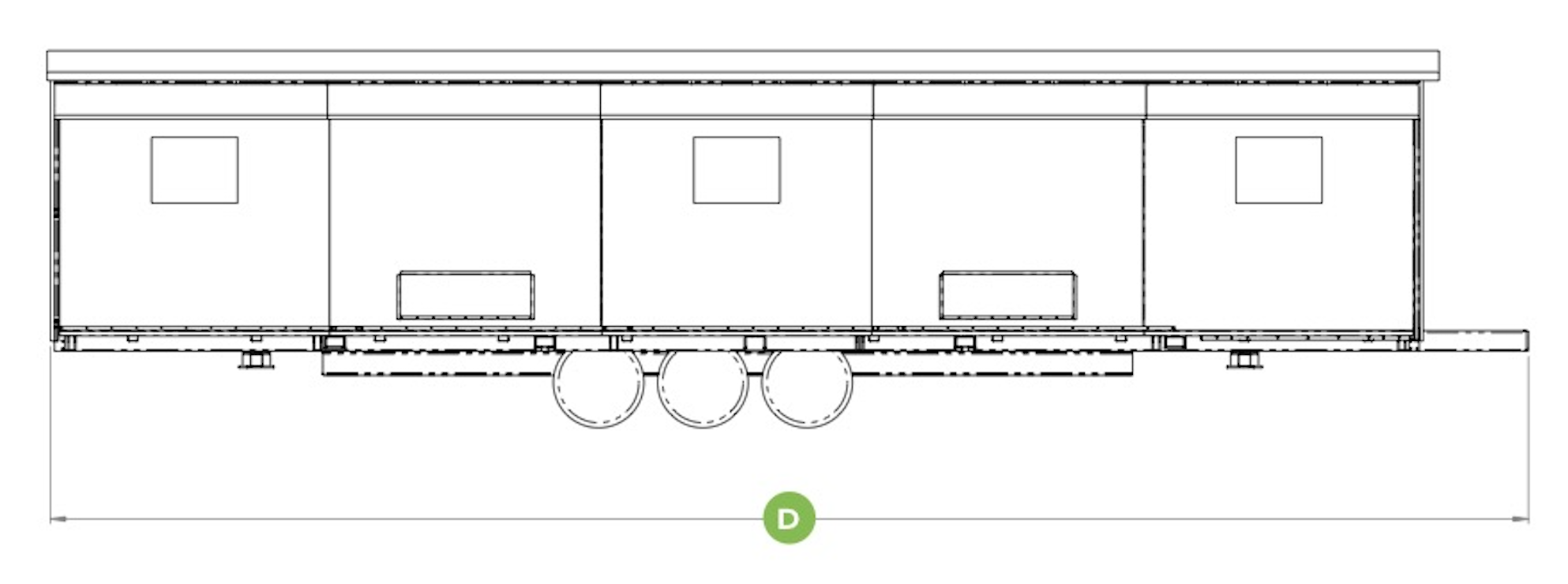

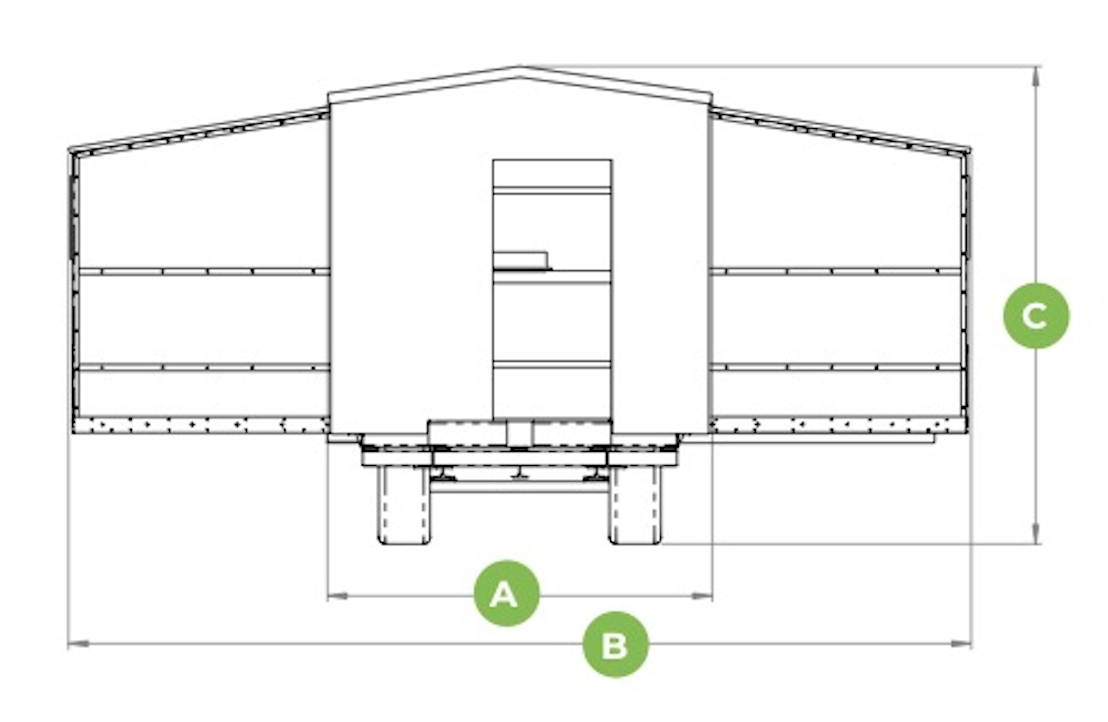

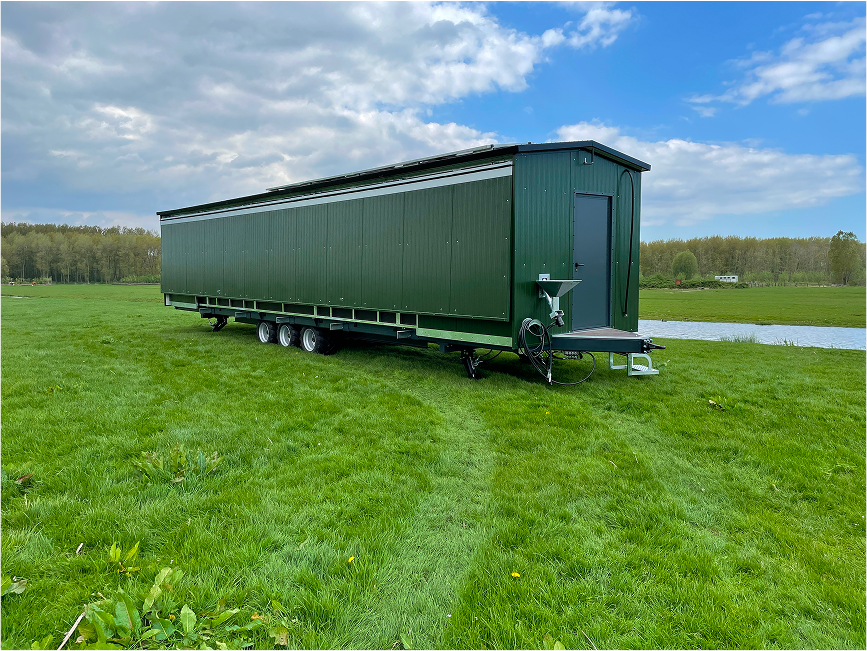

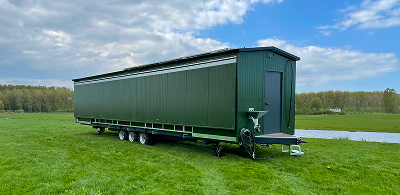

The wide tires under the cart provide good pressure distribution on the land, keeping the cart excellently maneuverable on different types of ground. When folded during transport, the cart is only 3 meters wide, which significantly reduces transport costs. On site, the cart is easily unfolded and assembled.

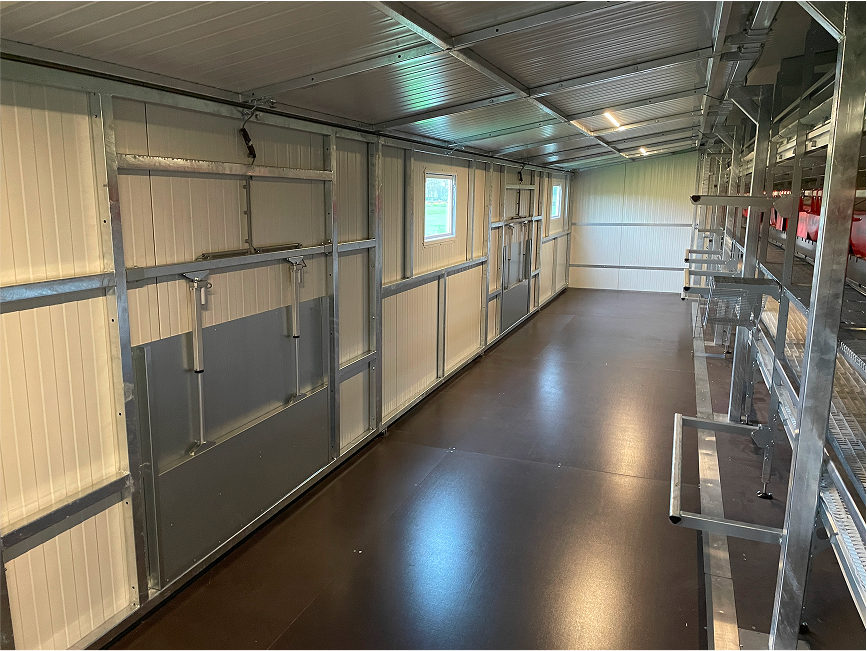

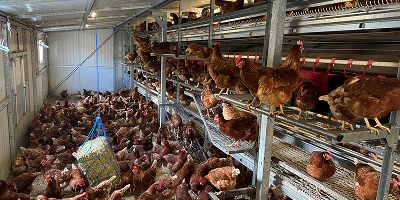

Inside the Chickenwagon 750 there are three floors for the laying hens. The floor has a closed floor on which the hens can freely scratch during the day. Through automatic exit doors, which are controlled based on sunset, the chickens gain access to the outdoor runs. This maintains their natural rhythm.

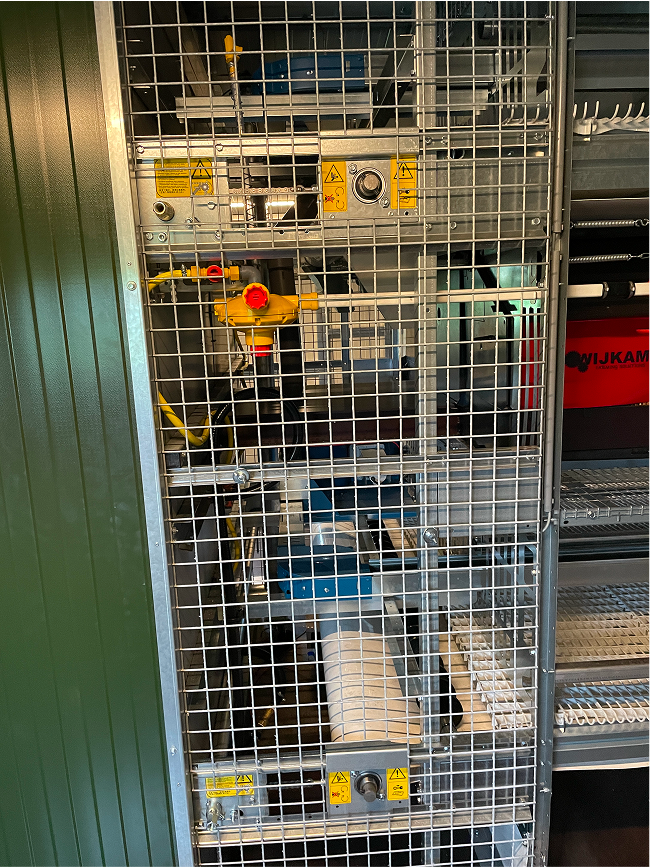

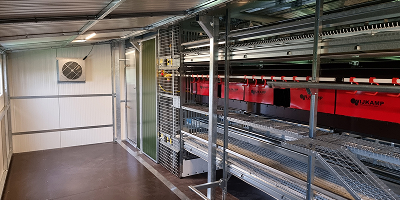

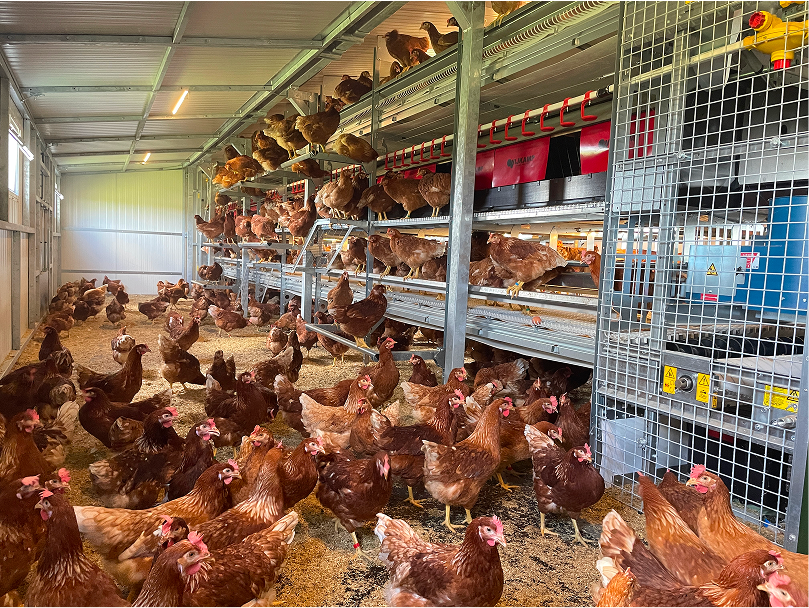

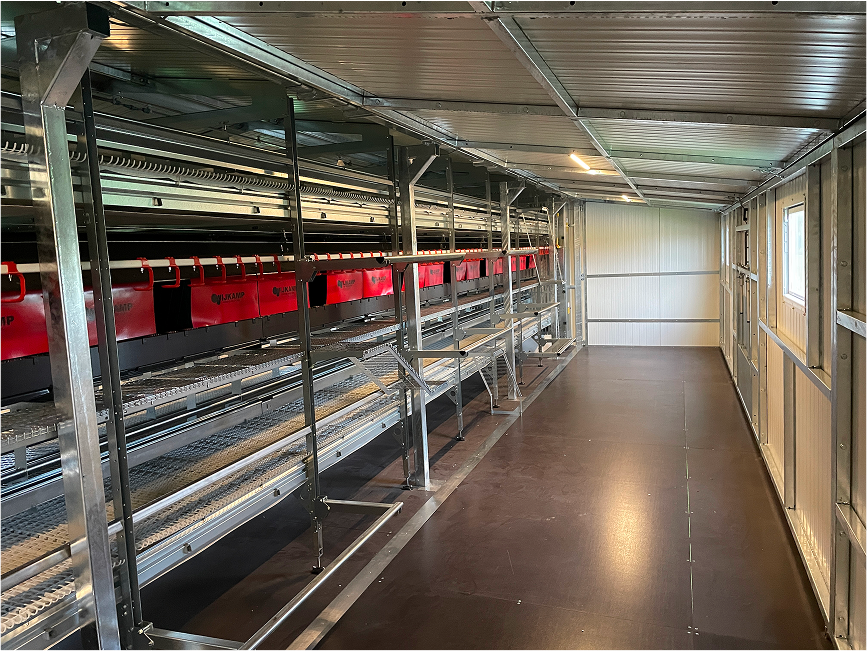

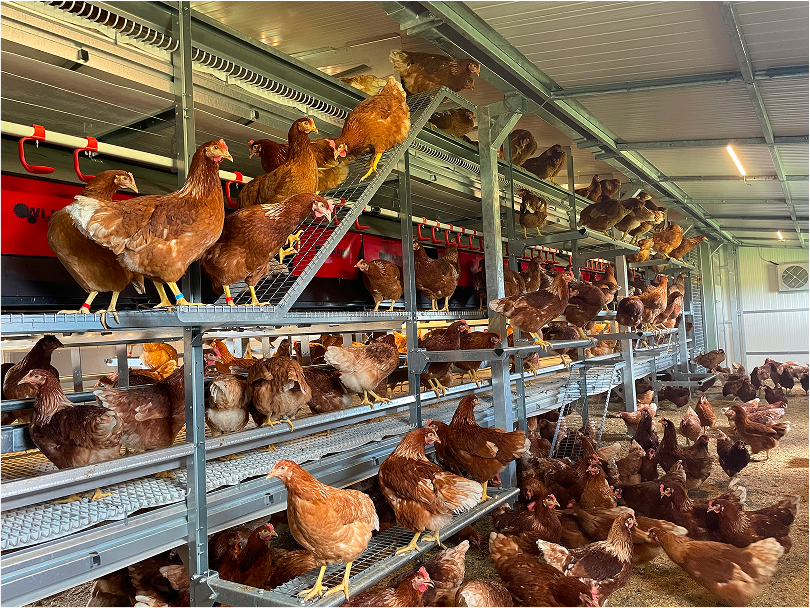

This Chickenwagon features integrated aviary equipment. This aviary includes the perches, laying nests, feeding system, drinking nipples and hydraulic manure belts. The manure belts can be easily turned off with a shovel or tractor. As much as 80% of the manure produced by the hens collects on the manure belts and needs to be removed weekly.
For a healthy indoor environment, the Chickenwagon 750 features:
- Two automatically controlled fresh air inlet trays
- Two frequency controlled fans
- Six windows that let in daylight and can be opened

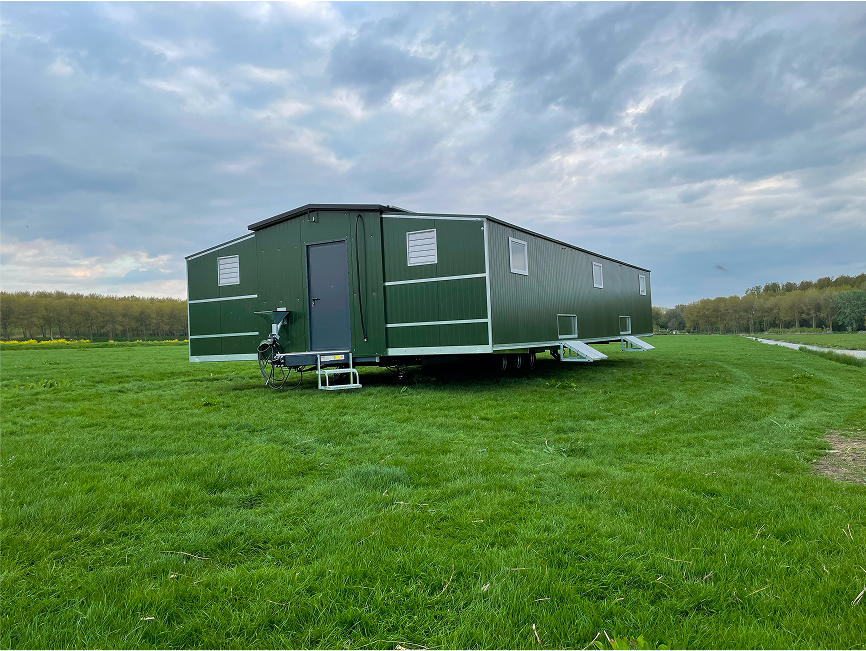

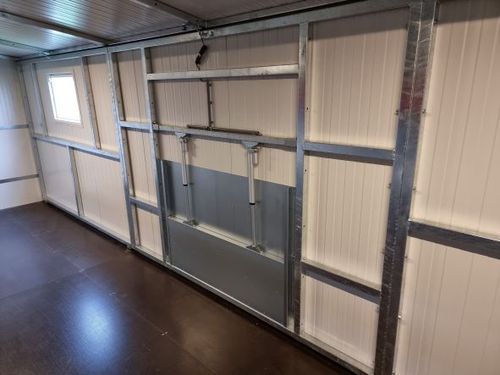

The insulation consists of sandwich panels in green on the outside. This ensures a neat appearance and long service life.

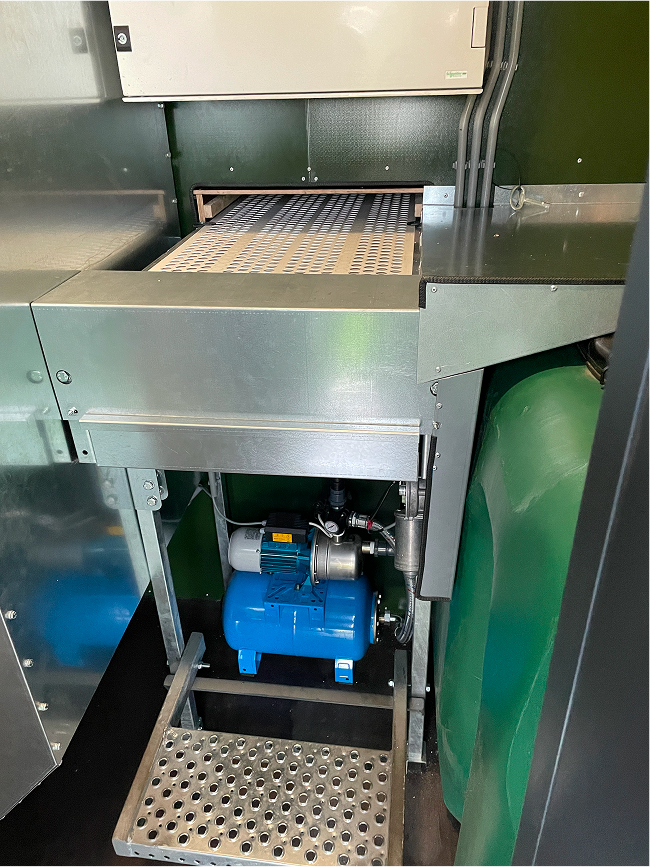

Upon entering the Chickenwagon , you will first enter the hygiene lock. In this area, boots and coveralls can be put on to enter the barn hygienically. Egg collection is fully automated. As soon as a laying hen lays an egg, the egg rolls automatically from the laying nest to the back on a motorized egg belt. This transports the eggs directly to the collection table in the hygiene sluice, where they can be easily sorted and packed into trays or boxes.
The laying nests are equipped with an automatic exit mesh, which closes at the end of the afternoon and reopens in the morning. This prevents hens from sleeping in the nests at night. This contributes to hygiene and ensures clean eggs.

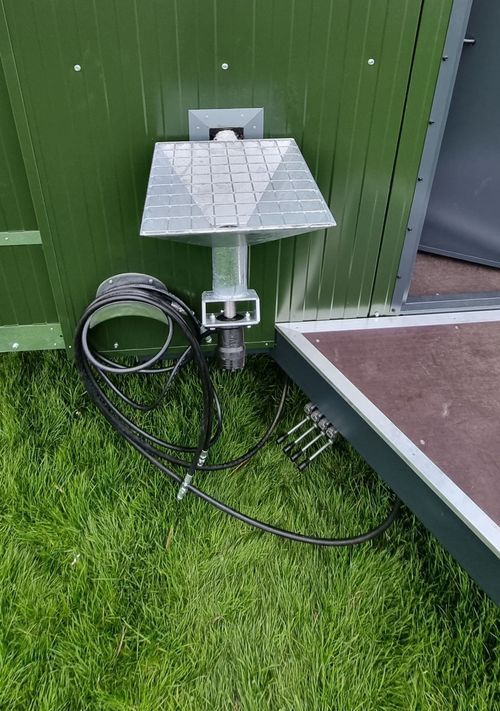

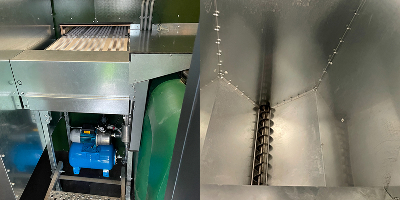

The Chickenwagon 750's water supply is easily refilled from the outside and provides enough capacity for a week. The water is distributed through two nipple lines with adjustable water pressure, ensuring the hens always have access to fresh drinking water. Thanks to the closed system and limited light penetration, algae growth is minimized, contributing to a hygienic drinking water supply. The automatic feeding system is located on two levels in the aviary and is adjustable up to six feedings per day. The cart has an integrated feed silo with a storage capacity for approximately one week. This silo is easily refilled from the outside, allowing you to continue operating the feeding system efficiently and with minimal labor.
The Chickenwagon 750 can be optionally equipped with a solar panel package and battery storage. This allows the cart to be completely self-sufficient for most of the year.

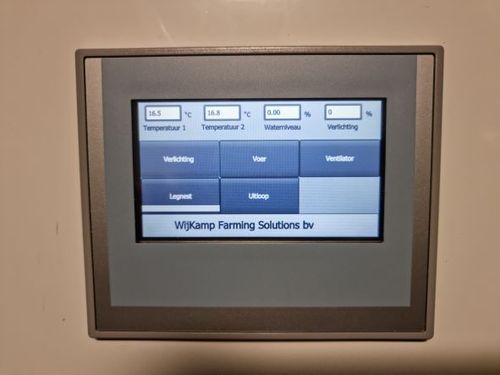

The Chickenwagon 750 features a modern control box with an integrated PLC system. This central control unit gives you full control over all automatic functions within the cart, keeping management simple and clear. Via a clear display, you effortlessly set the times for LED lighting, opening and closing of the exit doors, laying nest extrusion system, feeding times, ventilation, etc. The water level is also continuously monitored and easy to read on the screen. This control box ensures the comfort and well-being of the laying hens. The control box is user-friendly and designed for optimal reliability.
